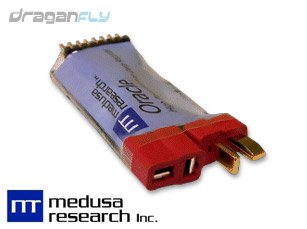

Medusa Research Oracle RC Data Recorder Standard Package with Deans Connectors The Oracle Data Recorder contains all of the functionality of the renowned Power Analyzer Pro in a package a fraction the size. Measuring only 1″ x 1.8″, this lightweight unit has the most power and functionality of any R/C data recorder. Records up to 10 different parameters: Volts, Amps, Watts, AmpHrs, WattHrs, two (2) Temperatures, RPM, Throttle and an Aux input. The Oracle Data Recorder is a precision measurement instrument that allows you to accurately measure and record all the performance information from your electric model. * Records Volts, Amps, Watts, WattHrs, AmpHrs, RPM, Throttle, two (2) Temperatures, and Aux Input * Recording times from 20 minutes to over 10 days * High resolution with 10mA current steps and 5mV voltage steps * Holds multiple recordings at one time * Factory Calibrated. Our units are the standard for accuracy for R/C meters and recorders. * User updatable and expandable for future enhancements The Oracle Data Recorder Standard Package Includes: * 1 Oracle Data Recorder (MR-DR-60100) * 1 Temp Sensor (MR-TEMP-001) * 1 RPM Phase Sensor (MR-RPM-002) * 1 POWERLink USB Adapter (MR-USB-001) w/USB Cable * Minimum Input Voltage: 5 Volts * Maximum Input Voltage: 60 Volts * Display Range: 60 Volts, -30 to 100 Amps, 9999 Watts, 999.999 Amp-Hours, 9999.9 Watt-Hours, 0 C to 130 C or 32 F to 266 F (user selectable), 60,000 RPM (up to seven blades/a4 poles), 10us to 2.5ms Throttle * Display Resolution: 0.005 Volts, 0.010 Amps, 1 Watt, 0.001 Amp-Hours, 0.1 Watt-Hours, 0.1 C or F, 25, 50, or 100 RPM (user selectable), 10us Throttle, 160 V Auxiliary Analog Input * Sample Rate: 229.4ms (4.4 samples/sec) Maximum, 58.5Secs (1 sample/Min) Minimum * Recording Time: 20 minutes to over 10 days * Dimensions (HxLxW): 9mm x 46mm x 26mm (0.35″ x 1.81″ x 1.02″) * Weight: 14g (0.49oz)
